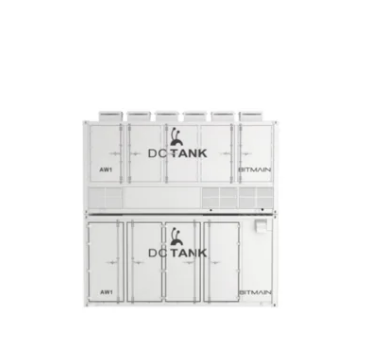

Bitmain Antminer DCTANK AW1 120KW Asic Miners Air Cooling Cabinet
$64,549
| Note : 1Set | 376U Rack Space |
| Note :Â We ship from the closest stock. Contact Sales to save on shipping. |
Description
Bitmain Antminer DCTANK AW1Â is a 120kW, 376U air cooled mining container that lets you host multiple mining racks in one efficient, plug and play rack system for serious crypto operations.
Bitmain Antminer DCTANK AW1 is a high capacity 120kW, 376U air cooled mining container designed for miners who want to scale fast with reliable, professional infrastructure. This Bitmain Antminer DCTANK AW1 rack system supports 8 cabinet layouts with 47U mining rack capacity per cabinet, giving you room for hundreds of classic air cooled ASIC miners in a single, compact footprint. The air cooled mining design delivers stable airflow, low PUE around 1.11 at 25°C, and optimized heat management so your crypto hardware runs cooler, safer, and more efficiently. Built for real world farms, the mining container is pre engineered for fast deployment, clean cable routing, and easier maintenance, helping reduce downtime and installation errors. Order Bitmain Antminer DCTANK AW1 online from Crypto Miner Bros to get genuine Bitmain Antminer infrastructure, transparent price offers, and responsive support from an experienced crypto mining team that ships worldwide with secure spot shipping options.
Specifications
| Manufacturer | Bitmain |
|---|---|
| Model | DCTANK AW1 |
| Server capacity, U | 376 |
| Container certification | CCS |
| Safety certification | NFPA 79:2024 UL 508A:2018 R7.22 CSA C22.2 No. 301:23 ANSI/ISO 12100:2012 EN ISO 12100:2010 EN 60204-1:2018 |
| Input voltage and Frequency | 400v |Â 50/60Hz |
| Total IT load, KW | 120 |
| Shipping weight, T | 4.6 |
| Power Distribution Cabinets(A) | 250×2 |
| Rated current, A | ≤405 |
| Number of Server Cabinets | 8 |
| Single cabinet capacity, U | 47 |
| Single cabinet power density, KW | 15 |
| Inlet cable | The incoming cable requires two three-phase, five-wire cables, each with the following requirements:L1 single core cable 350kcMil（185mm²） L2 single core cable  350kcMil（185mm²） L3 single core cable  350kcMil（185mm²） N Single-core cable  250kcMil（127mm²） PE single-core cable  250kcMil（127mm²） |
| Cooling Tower | |
| Size | 6058 × 2438 × 2896mm |
| PUE@ 25℃ Ambient Temperature | 1.11 |
| Rated Cooling Capacity, kW | 120 |
| Container certification | CCS |
| Motor Rated Voltage and Frequency | 400v |Â 50/60Hz |
| Shipping Weight, T | 5.8 |
| Operating Weight, T | 7.8 |
| Supply Air Temperature, ℃ | 25 |
| Return Air Temperature ,ËšC | 38 |
| Water Consumption @ 25˚C, m3/h | 0.2 |
| Noise | 75db |
| Temperature | -40 – 45˚C |
| Humidity | 5 -95% |
